Initializing The Raspberry Pi

Before we start working on the projects, we need to initialize the Raspberry Pi by setting up Node.js.

Updated 2021-06-18: Added information on headless installation and Raspberry Pi Zero W (can’t use remote VS Code, and you may not want to install a desktop).

Prepare The Hardware

Before you begin, let’s get some stuff ready. You need:

Computers
- Raspberry Pi
  - This article was originally written for Raspberry Pi 4B (4GB).
  - I have updated this article to include the Raspberry Pi Zero W.
- Computer
  - A computer to download the O/S and write to the Micro SD memory card.
  - It could be Windows or Mac computer, but it could also be another Raspberry Pi.
  - I am going to refer to this as the “Main Computer.”
MicroSD memory card
- Minimum 8GB
- Recommended 16GB
HDMI monitor, USB keyboard and mouse
- These devices help during the setup making things easier.
- They are not required because you could use a “headless installation.”
- They are not needed after properly configuring SSH and VNC.

Initialize The SD Card

Get the Raspberry Pi Imager
- Windows or Mac:
  - Go to https://www.raspberrypi.org/software and download and install the Raspberry Pi Imager for your operating system.
- Raspberry Pi:
  - Type sudo apt install rpi-imager in the terminal window.
Open the Raspberry Pi Imager
Following the screens, choose the Raspberry Pi OS.
- Do you need a desktop (graphical environment)?
  - Sometimes, you don’t need a desktop and could save on some resources, especially on smaller devices like the Raspberry Pi Zero W.
  - You can control the device via the terminal (command line) or remotely using SSH.
- With desktop: Select the default “Raspberry Pi OS (32-bit).”
- Without desktop: Select “Raspberry Pi OS Lite (32-bit).”.
Setup advanced options
- Press ⌘⇧X (on a Mac) or CRTL+SHIFT+X (on windows or Raspberry Pi)
- Hostname
  - Make sure this is unique in case you have multiple Raspberry Pi devices
- SSH
  - Enable SSH and set the password authentication
- Wi-Fi
  - Type the SSID and password for the network you want your Raspberry Pi to use
  - Some Raspberry Pi devices, like the Zero W, do not support 5GHz channels.
  - If you are planning on creating a web server that can be accessed publically, and you have several routers at your location, make sure you select the Wi-Fi provided by your internet provider so you can access your Raspberry Pi from outside your network without having to make too many changes to the internal routers ;-)
  - The law requires you to select the country where the Wi-Fi device operates because it controls the radio frequencies used. Find your country and read this to understand why it’s required.
- Locale settings
  - Select the timezone and keyboard
- Click Save
Select the storage based on the SD card you have available.
- On the Raspberry Pi, you must connect another SD card via a USB adaptor because you can’t format it’s own hard drive ;-)
Finally, click Write
- Follow the prompts and enter a password if asked.
- Wait, wait and keep waiting
- Once done, did I say you would need to wait, close the window.

Headless Installation

Although it’s not required, I highly recommend connecting a keyboard, mouse and HDMI monitor to the Raspberry Pi device for the first time it boots up. That way, you can keep an eye on the process and ensure everything goes smoothly. The first boot may take some time. How do you know if everything is going well if you can’t see with a monitor or interact with it using a keyboard/mouse?

If you prefer not to or can’t connect those input/output devices, you could configure the boot to work on a “headless mode.”

Configuring the headless mode is pretty straightforward. You may not need to do anything if you configure the SD card using the advanced options describe above. Check out the file named firstrun.sh, which should include these lines:

systemctl enable ssh
cat >/etc/wpa_supplicant/wpa_supplicant.conf <<WPAEOF
country=CA
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
ap_scan=1

update_config=1
network={
	ssid="<Wi-Fi SSID HERE>"
	psk="<PASSWORD HERE>"
}

WPAEOF
echo "America/Toronto" >/etc/timezone

What can you do if you did not configure the advanced settings on the SD card? Or you need to change a setting after the initial boot? Easy, reinsert the SD card and configure some additional files.

To enable SSH, you need to create an empty file named ssh on the root of the boot folder.
Configuring Wi-Fi is a bit more complex because you not only need to indicate that you want to use Wi-Fi, but you need to specify the country, network and password. To do so, follow these instructions:
- On the root of the SD Card, create a file named wpa_supplicant.conf with the following content:
```
country=<COUNTRY_CODE>
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1
network={
  scan_ssid=1
  key_mgmt=WPA-PSK
  ssid="<Wi-Fi SSID HERE>"
  psk="<PASSWORD HERE>"
}
```

Initialize The Raspberry Pi

Insert the Micro SD card in the Raspberry Pi
Connect the HDMI monitor, mouse and keyboard

I highly recommended this. At least it would help if you connect an HDMI monitor.
You can always connect to the Raspberry Pi via SSH and VNC (if you installed the desktop), but it’s good to keep an eye on the boot.

Turn on the device and follow the screens menus

If you have configured the desktop version, you may be prompted to set up the location, password, screen, Wi-Fi, and perform software updates.

Find the IP Address

If you installed the desktop, open up the terminal window first.
Type hostname -I to find the Raspberry Pi’s IP address in your local network.
Alternative ways to find the IP Address
- If your “main computer” is on the same router as the Raspberry Pi, you can use this command ping <RaspberryPiName>.local to find the device’s IP address.
- You can use your Wi-Fi’s web page (if it has one) and find the IP address that has been provided dynamically or assign a fixed IP address.

SSH and VNC Validation

You can use an SSH client (command line terminal) and a VNC client (if you use a desktop) to connect your main computer to the Raspberry Pi using the IP address or the hostname. After completing the VNC setup, you may disconnect the monitor, keyboard and mouse.

You can use this command ssh pi@<IPAddress> or ssh pi@RPIName.local from the “main computer” to open SSH.

If you get this response ssh: connect to host rpiZero.local port 22: Connection refused, it just hangs, or you do not see any output yet the Raspberry Pi may still be booting. It could take few minutes to boot, especially the first time. (that’s where an HDMI monitor helps).

The first time you connect, you will see a prompt to accept the authenticity of the host. If you trust it, type yes. Once you accept the request, the device is recognized, and you will not be prompted again. Then you need to enter the device’s password, and you can start interacting via the terminal with the device. When you finish, type exit to terminate the SSH session.

Once you are in an SSH session, it’s a good idea to update the software installed. For that, you can try these commands:

# Refreshes repository index
sudo apt update

# Upgrades all upgradable packages
sudo apt upgrade

# Upgrades packages with auto-handling of dependencies
sudo apt full-upgrade

If you installed a version of the OS with a desktop, you might want to configure VNC, but first, ensure SSH is completely setup, and you have tested it. Then, enter this command sudo raspi-config while in an SSH session. Then, navigate the menus, and go to Interfaces > VNC and enable it. Once this is complete, you can use a VNC terminal to connect to the Raspberry Pi.

Configure Node.js

NOTE: Node.js versions 12 and later no longer support ARM6! But you can still install Node.js on those versions.

Raspberry Pi uses different instruction sets for their chips, ranging from ARMv6 to ARMv8. Unfortunately, Node.js version 12 stopped the support for ARMv6. If you are working with a chip that uses an older instruction set, you can still use Node.js, but the installation steps may differ.

Instruction Set	Raspberry Pi	Node.js
ARM8	RPi 4, RPi 3, RPi 2 Model B v1.2	Current LTS version v14.17
ARM7	RPi 2 Model B	Current LTS version v14.17
ARM6	RPI Zero, RPI (v1)	Official support up to version 11.15 or you could use the LTS unoficial version v14.17

Today (June 19, 2021), the LTS (Long Term Support) version of Node.js is 14.17.

Please visit the article on Raspberry Pi Families And Models for additional information and details on the chips

ARM6 (Raspberry Pi Zero W)

If you are installing Node.js on a Raspberry Pi Zero W, you have two options. First, Install an old version of node.js version 11.15, but there could be features that you need which are not available on that particular version. Second, you can install an unofficial version of Node.js version v14.17, but since this is not official, it’s not supported, and there could be things that do not work. There are no guarantees that it works (it’s not an official release), but I am using that version, and it works great for me!

How to install an unofficial version of Node.js?

Go to the Unoffical builds download page
Choose the folder for the version you want to install and select the file with extension .xz
- I am using LTS version (v14.17.0) and I downloaded this file node-v14.17.0-linux-armv6l.tar.xz.

mkdir work
cd work
mkdir Node.js
cd Node.js
wget https://unofficial-builds.nodejs.org/download/release/v14.17.0/node-v14.17.0-linux-armv6l.tar.xz

After downloading the file, you need to execute this command tar xvfJ node-v14.17.0-linux-armv6l.tar.xz to extract it.
Use this command sudo cp -R node-v14.17.0-linux-armv6l/* /usr/local to copy the code to the right path.
[Optional] you may want to delete the file downloaded and the folder created.

rm -rf node-v14.17.0-linux-armv6l
rm node-v14.17.0-linux-armv6l.tar.xz

Type this command sudo reboot to reboot the Raspberry Pi.
- You may also want to use sudo shutdown -h now if you want to shut it down.

ARM8 (Newer devices)

You need to log in as root, so type this sudo su to do so.
Download Node.js curl -fsSL https://deb.nodesource.com/setup_current.x | bash -
Install it apt install -y nodejs.
Type this command sudo reboot to reboot the Raspberry Pi.
- You may also want to use sudo shutdown -h now if you want to shut it down.

Test the installation

Let’s create a folder for the work in the terminal window.

Ensure you are in the home directory cd ~/
Make the folder mkdir work
Navigate to it cd work

Let’s ensure we have Node.js running correctly.

Create a new folder mkdir tests
Change to it cd tests
Write a simple Node.js code echo "console.log('Hello Node.js');" > test01.js
Run it node test01.js

You should see Hello Node.js on the screen.

Configure a Node.js Web Server

What about a web server? Great question! I am glad you asked. Let’s copy this code in a file named test02.js. You may want to use nano test02.js or any other text editor.

const http = require("http");
const server = http.createServer((req, res) => {
  res.writeHead(200, { "Content-Type": "text/html" });
  res.write(`<h1>Hello Node.js</h1>${new Date()}<br/>`);
  res.end(`${new Date().toJSON()}`);
});
server.listen(3000, "127.0.0.1");
console.log("Web server is running…");

After saving the file, run it by typing this command: node test02.js. You should see Web server is running… in the terminal, but how can you test it? Well, it depends if you have a desktop or not.

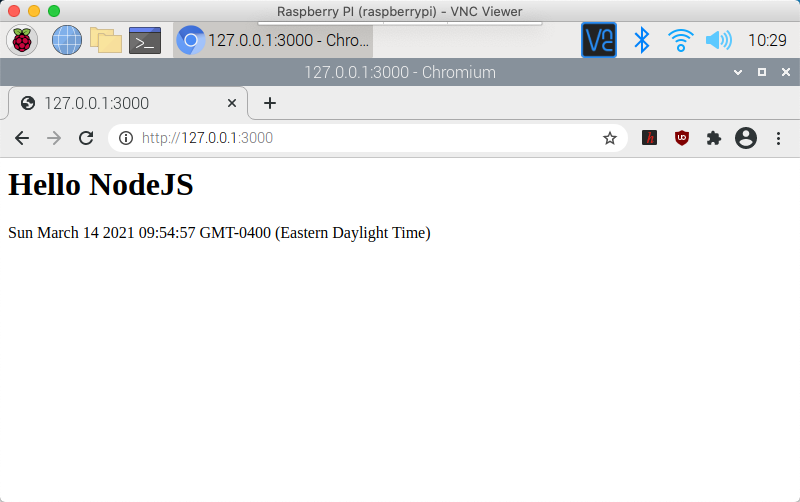

With Desktop: Open up the chromium web browser and go to this address: http://localhost:3000.

Node.js WebServer @ Localhost

Without Desktop: Open a new terminal (or a new SSH session) and type curl http://localhost:3000 to fetch the page.

In either case, you should see the Hello Node.js page with your current time.

At this point, we can browse the Node.js web server from the same device (Raspberry Pi) but not from your main computer, even though they are in the same network. Let’s fix that by installing NGINX

It’s always a good idea to update your Raspberry Pi before installing any software, so in the terminal window, type these commands:

# Refreshes repository index
sudo apt update

# Upgrades all upgradable packages
sudo apt upgrade

# Upgrades packages with auto-handling of dependencies
sudo apt full-upgrade

Let’s install NGINX using this command: sudo apt install nginx and follow the prompts.

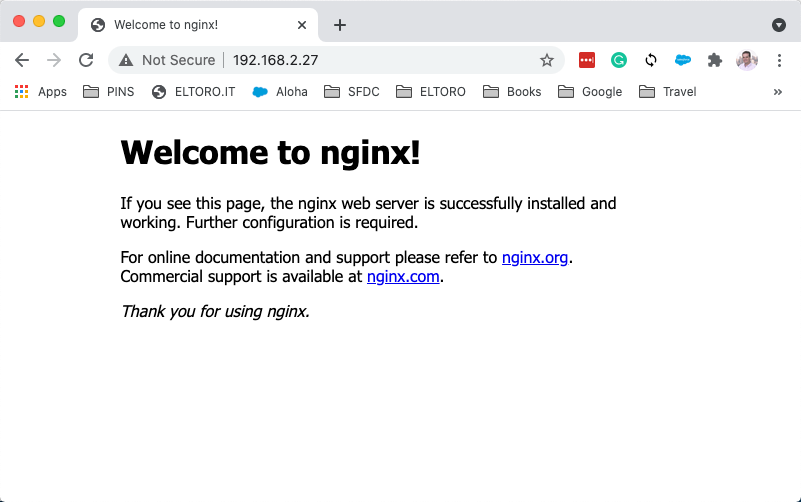

At this point, we can open a browser on our main computer and browse to the IP address we found earlier (hostname -I). You should see a page with this message: Welcome to nginx!

Basic NGINX

But this is not our Node.js server, so let’s configure NGINX.

Change to the directory where NGINX stores the configuration settings cd /etc/nginx/sites-available/
Make a backup of the current settings sudo mv default default.bak
Open a text editor with the config file sudo nano default

Copy this code into that file (that’s why we did a backup):

server {
    listen 80;
    server_name localhost;

    location / {
        proxy_pass http://localhost:3000;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
        proxy_cache_bypass $http_upgrade;
    }
}

Ensure the new file’s content is precisely the lines above, nothing more, nothing less. Type this command: cat default
Restart NGINX by using this command sudo service nginx restart.
If you had stopped the Node.js web server, restart it with this command: node test02.js. Ensure you are on the folder where you saved that file (cd /home/pi/work/tests).
You can now open a web browser on your main computer and browse the Raspberry Pi’s IP address (or hostname).
- If you configure your Modem (port redirect), you could expose your Raspberry Pi as a web server to the world.

Configure VS Code Remote Development

VS Code does not run on slow devices, like the Raspberry Pi Zero W.

On your main computer, open VS Code and add these two extensions:

Remote - SSH
Remote - SSH: Editing Configuration Files

Open the command palette and type >Remote-SSH: Connect Current Window to Host… enter the IP address for your Raspberry Pi and the password if asked.

You can now use the Raspberry Pi from VS Code as if this was your main computer. For example, if you open files or save them, they are written to the Raspberry Pi. If you open the terminal window, it’s your Raspberry Pi…!
